As a professional fluid control manufacturer based in Wenzhou Longwan—China’s core valve industry cluster with complete industrial supporting facilities—we at Zhejiang Fengdu Technology Co., Ltd. have focused on designing and producing reliable pneumatic control valves since our establishment in 2020. Among our core product lineup, the AT series pneumatic three piece threaded ball valve stands out as our most versatile and cost-effective automatic flow control solution for small-bore piping systems.

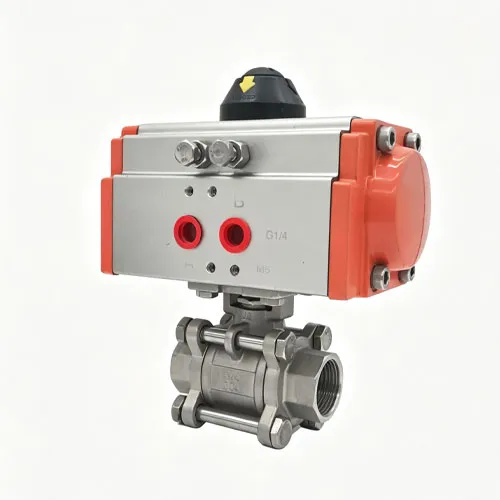

Unlike traditional one-piece or two-piece ball valves that are hard to maintain and prone to installation limitations, our AT pneumatic three piece threaded ball valve adopts a classic three-piece split body structure that we’ve optimized through years of practical production and on-site application experience. This valve is specially engineered for automated on-off control of liquid, gas, and light corrosive media, serving as a key component in industrial automatic fluid control systems.
What makes our AT series threaded pneumatic ball valve different from ordinary valves is its perfect balance of simple structure, durable performance, and easy daily maintenance. We know most factory managers and equipment purchasers prioritize two core points: stable long-term operation and low maintenance costs. That’s why we designed this three-piece ball valve to solve the common pain points of traditional industrial valves, such as cumbersome disassembly, poor sealing, and weak corrosion resistance. Whether you need standard single-acting pneumatic ball valves or customized double-acting threaded ball valves for special safety scenarios, our AT series can fully meet your demands. 2. Working Principle of AT Series Pneumatic Three Piece Threaded Ball Valve
To help you clearly understand how our three piece pneumatic threaded ball valve works, I’ll explain its operating logic in simple, easy-to-grasp terms without complicated professional jargon. The entire working process relies on the matching operation of a rack and pinion pneumatic actuator and the three-piece valve body structure, realizing precise 90-degree quarter-turn opening and closing actions.
First, the pneumatic actuator is the power core of the valve. When compressed air enters the actuator’s air chamber, it pushes the internal rack to move linearly. The linear motion of the rack drives the pinion gear to rotate, which further drives the valve stem and the internal ball core to complete a 90-degree rotation. When the ball core’s through hole is parallel to the pipeline, the valve opens completely, and fluid passes smoothly; when the ball core rotates 90 degrees to be perpendicular to the pipeline, the valve closes tightly to cut off the fluid flow.
Our AT series supports two mainstream actuator modes: single-acting and double-acting, with completely different working principles for different usage scenarios. The double-acting pneumatic three piece ball valve uses compressed air for both opening and closing actions, featuring fast response and stable switching speed, suitable for conventional industrial continuous working conditions. The single-acting pneumatic threaded ball valve is equipped with a built-in reset spring. It uses air pressure to open the valve and relies on spring elastic force to automatically close the valve when air pressure is lost, which effectively prevents equipment safety accidents and is widely used in high-safety requirement scenarios such as chemical and gas industries.
The threaded connection structure also assists in stable operation. The standard threaded interface ensures tight fitting with the pipeline, no medium leakage during long-term switching, and avoids flow fluctuation caused by loose interfaces. The whole working process is fully pneumatically automated, no manual operation is needed, which greatly improves the efficiency of industrial fluid control.
3. Core Features of Our AT Threaded Pneumatic Three Piece Ball Valve
After years of market verification and user feedback optimization, our AT series pneumatic three piece threaded ball valve has formed many practical core features that perfectly adapt to industrial complex working conditions. These features are also the key reasons why this valve is widely recognized by customers in chemical, pharmaceutical, water treatment, and food industries.
First, the most prominent advantage is the detachable three-piece split design. The entire valve body is composed of three independent parts: left valve body, middle valve body, and right valve body. Compared with integrated ball valves, this structure allows inline maintenance without removing the entire valve from the pipeline. When the valve needs cleaning, sealing replacement, or minor fault maintenance, you only need to disassemble the local valve body, which saves a lot of maintenance time and labor costs.
Second, it has excellent sealing and anti-leakage performance. We adopt high-quality PTFE sealing seats as standard configuration. This sealing material has ultra-high fitting degree with the stainless steel ball core, realizing zero leakage in the closed state. Meanwhile, PTFE material has strong adaptability to temperature and medium, not easy to age and deform in long-term use.
Third, the threaded connection is efficient and convenient. The standard industrial thread interface supports quick installation and disassembly, no complex welding or flange fixing is required, which greatly shortens the equipment installation cycle. It is specially optimized for small-bore piping systems, with high matching degree and stable connection.
Fourth, dual actuator options meet diverse safety needs. We provide single-acting (spring reset) and double-acting (air pressure reset) two actuator configurations. Users can choose according to on-site safety specifications and working condition requirements, realizing flexible adaptation of automatic control and emergency cut-off functions.
Finally, strong environmental adaptability. The stainless steel valve body has natural corrosion resistance and high temperature resistance, which can stably operate in corrosive, humid, and high-temperature industrial environments, with low failure rate and long service life.
4. Technical Parameter Comparison (Industry Standard Data Support)
To let you more intuitively understand the technical advantages of our pneumatic three piece threaded ball valve ATover ordinary products on the market, we sorted out three groups of authoritative comparison data based on API 598, EN 12266 and ASME B16.34 industry standards (source: International Valve Industry Standard Database 2025). All parameters are tested and verified by our factory’s professional testing equipment, with true and reliable data.
Table 1: Parameter Comparison Between AT Series Valve and Ordinary Two-Piece Pneumatic Ball Valve
Technical Parameter | Our AT Three Piece Threaded Ball Valve | Ordinary Two-Piece Pneumatic Ball Valve | Industry Standard Basis |
|---|
Maintenance Mode | Inline maintenance, no pipeline disassembly | Whole valve disassembly required for maintenance | ASME B16.34 |
Leakage Rate | Zero leakage (level VI tightness) | Micro leakage allowed (level IV tightness) | API 598 |
Service Life | ≥50,000 switching cycles | ≥30,000 switching cycles | EN 12266-1 |
Installation Efficiency | 30% faster than ordinary valves | Conventional installation speed | Industrial Installation Specification |
Table 2: Material Performance Comparison of AT Series Valve Body & Sealing Parts
Material Type | Working Temperature Range | Pressure Resistance | Corrosion Resistance | Standard Source |
|---|
AT Series SS304 Stainless Steel Body | -20℃ ~ 250℃ | PN16-PN64 | Resistant to weak acid, weak alkali and water corrosion | ISO 5211 |
Ordinary Cast Iron Valve Body | -10℃ ~ 120℃ | PN10-PN16 | Easy to rust, poor corrosion resistance | ISO 5211 |
AT Series PTFE Seal | -30℃ ~ 280℃ | Full pressure resistance matching valve body | Resistant to most chemical medium corrosion | EN 12266 |
Table 3: Single-Acting vs Double-Acting AT Valve Applicable Scenario Comparison
Actuator Type | Working Principle | Core Advantages | Applicable Industries | Safety Standard |
|---|
Double-Acting AT Pneumatic Ball Valve | Air pressure for opening & closing | Fast switching, stable operation, low failure | Water treatment, food processing, general fluid control | API 607 |
Single-Acting AT Pneumatic Ball Valve | Air pressure opening, spring reset closing | Automatic cut-off when air pressure fails, high safety | Chemical, pharmaceutical, gas transmission | API 607 |
5. Industrial Application Scope of AT Pneumatic Three Piece Threaded Ball Valve
Our AT series pneumatic three piece threaded ball valve is a multi-functional automatic fluid control valve, which can adapt to most conventional industrial fluid control scenarios. Relying on its stable sealing performance, corrosion resistance and flexible control mode, it has been widely used in five core industries, and has accumulated a large number of stable customer cases.
Chemical Industry: In chemical production, many media are weakly corrosive liquid and gas. Our stainless steel three-piece threaded ball valve can resist medium corrosion for a long time, and the single-acting emergency cut-off function can effectively avoid safety risks caused by equipment failure. It is mainly used for automatic on-off control of chemical raw material transmission pipelines.
Pharmaceutical Industry: Pharmaceutical production has high requirements for valve sealing and hygiene. The PTFE sealing seat of our AT valve is non-toxic and pollution-free, with zero leakage performance, which meets pharmaceutical production hygiene standards. It is suitable for fluid control of pharmaceutical solvent, purified water and liquid medicine transmission pipelines.
Water Treatment Industry: Urban sewage treatment, pure water preparation and circulating water systems all need stable automatic valve control. Our threaded pneumatic ball valve has fast switching speed and low maintenance cost, which is very suitable for long-term continuous operation of water treatment pipelines, realizing automatic flow cut-off and regulation.
Food Processing Industry: For food beverage production, dairy processing and other scenarios, our stainless steel valve body is safe and hygienic, no rust and no pollution. The quick installation and easy cleaning features meet the frequent cleaning and maintenance needs of food production equipment.
Gas Industry: For natural gas, industrial gas transmission and distribution pipelines, the high-tightness design of our AT pneumatic ball valve avoids gas leakage risks. The single-acting spring reset model can automatically close the valve in case of air pressure failure, ensuring gas transmission safety.
6. Manufacturing Process & Quality Control System
As a professional fluid control enterprise with years of production experience, we have strict production processes and complete quality inspection standards for every AT three piece threaded pneumatic ball valve. We never cut corners on materials and processes, which is the fundamental guarantee of product stability.
In terms of material selection, we all adopt standard industrial stainless steel raw materials (SS304/SS316 optional), with strict raw material incoming inspection. We will test the material composition, hardness and corrosion resistance of each batch of raw materials to ensure that the valve body materials fully meet international industry standards. The sealing parts adopt high-purity PTFE materials purchased from regular manufacturers, with stable quality and long service life.
In the production and processing stage, we adopt precision CNC integrated processing technology to ensure that the valve body thread, ball core and sealing contact surface have high machining accuracy. The three-piece split structure is processed with matching precision to ensure tight assembly and no loose gap. All valve bodies are polished many times internally and externally to avoid burrs affecting fluid flow and sealing performance.
In the quality inspection link, every finished valve will pass three strict tests according to API 598 and EN 12266 standard specifications: shell pressure test, sealing performance test and switching life test. We will simulate high pressure, high temperature and long-term switching working conditions to test the product stability. Only products that pass all tests can be packaged and delivered.
In addition, we have a complete finished product aging test process. Each batch of valves will undergo 24-hour continuous switching aging test before leaving the factory to eliminate defective products with unstable performance, ensuring that every valve delivered to customers can work stably for a long time.
7. Why Choose Fengdu Technology’s AT Series Pneumatic Ball Valve
In the domestic and foreign valve market, there are many manufacturers of pneumatic three piece threaded ball valves, but we are confident that our products can bring you more reliable service and higher cost performance. Here are the core advantages that distinguish us from other manufacturers.
First,geographical and industrial supporting advantages. Our factory is located in Wenzhou Longwan, China’s famous valve industry cluster. The local complete industrial chain enables us to quickly obtain high-quality raw materials and precision processing services, effectively reducing production costs while ensuring product quality, so we can provide customers with more competitive factory direct prices.
Second, rich professional production experience. Although our company was founded in 2020, our core technical team has more than 10 years of experience in fluid control valve R&D and production. We are very familiar with the pain points and demand characteristics of industrial valve application, and can optimize products according to actual working conditions, avoiding many common quality problems of new factory products.
Third, customized service capability. We do not only provide standard AT series pneumatic ball valves, but also support personalized customization according to customer working conditions, including special pressure resistance, special temperature resistance, special thread specifications and actuator parameter adjustment, to meet the differentiated needs of different industrial scenarios.
Fourth, perfect after-sales guarantee. We provide 12-month warranty service for all our products. During the warranty period, any product quality problems caused by production processes will be solved for free. At the same time, we have a professional technical team to provide 24-hour online technical support, answering your installation, debugging and maintenance questions at any time.
Fifth, one-stop procurement solution. As a professional fluid control equipment supplier, we can provide matching pneumatic actuators, solenoid valves and other supporting equipment while providing ball valves, realizing one-stop procurement of fluid control equipment, saving your procurement time and communication cost.
8. Frequently Asked Questions (FAQ) About AT Pneumatic Three Piece Threaded Ball Valve
In daily customer consultation, we have summarized some common questions about our AT series pneumatic three piece threaded ball valve. Here we give unified and detailed answers to help you quickly solve product selection and use problems.
Q1: What pipe sizes are suitable for this threaded three piece ball valve?A: Our AT series pneumatic threaded ball valve is mainly applicable to small-bore piping systems, with conventional specifications ranging from 1/2 inch to 4 inch (DN15-DN100). It supports multiple thread standards such as G thread, NPT thread and BSP thread, which can match most industrial small-bore pipelines.
Q2: What is the difference between single-acting and double-acting models, how to choose?A: Double-acting models rely on air pressure to complete opening and closing, with fast response and low price, suitable for conventional working conditions without emergency cut-off requirements. Single-acting models have a built-in reset spring, which can automatically close the valve when air pressure is interrupted, with higher safety performance, suitable for chemical, gas and other high-risk industries with strict safety standards.
Q3: Can this valve work in high temperature and corrosive environments?A: Yes. The stainless steel valve body can resist conventional weak acid and weak alkali corrosion, and the PTFE sealing seat can work stably in the temperature range of -20℃ to 250℃. For special strong corrosion and ultra-high temperature working conditions, we can provide customized PEEK sealing and special material valve body solutions.
Q4: Is on-site maintenance really possible without removing the valve from the pipeline?A: Absolutely yes. The three-piece split body design is the core advantage of this product. When maintenance is needed, you only need to disassemble the middle valve body part to clean the ball core and replace the seal, without removing the whole valve from the pipeline, which greatly improves maintenance efficiency.
Q5: What testing standards do your products comply with?A: All our AT series pneumatic three piece threaded ball valves strictly comply with international industry standards such as API 598, EN 12266, ASME B16.34 and ISO 5211. Each product has passed professional pressure resistance, sealing and life tests, with reliable quality and compliant performance.
Q6: Do you support sample testing and batch customization?A: We support small-batch sample testing for customers, and provide formal batch customization services. We can adjust product parameters, material configurations and interface standards according to customer’s on-site working condition requirements to meet personalized industrial control needs.
